Fluorescent Lamp Holders
This page was last updated: August 13, 2017
RAPID-START LAMP HOLDER
Molded In White
Thermosetting Plastic
Wireways for Flush Wiring Holes
Centered 31/32"
9" 18 GA. 105° Leads
Rated 660W-600V

D02-4-2653
RAPID START LAMP HOLDER
Snap-In Only
Diameter Holes .156"
Panel Thickness
.033 To.054mm
9" 18 GA. 105° Leads
Rated 660W-600V

D02-4-3945

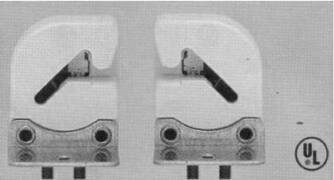

AUTOMATIC LOCKING & EJECTION
Bi-Pin Lamp Holders
Molded of White Thermosetting Plastic
Steel Mounting Bracket Riveted to Body
Hole Threaded #6-32 and Located 11/16" On
Center From Back of Lamp Holder
6" 18 GA 105° Leads
Rated 660W-250V

D02-4-2669-Left Hand Side
D02-4-2668-Right Hand Signs
RAPID START LAMP HOLDERS
Molded White Body
Copper Alloy Contacts
Wireways For Flush Mounting
9" 18 GA. 105° Leads
Rated 660W-600V

D02-4-2760 Rigid End
D02-4-2762 Plunger End
SINGLE LAMP HOLDER
D02-4-486

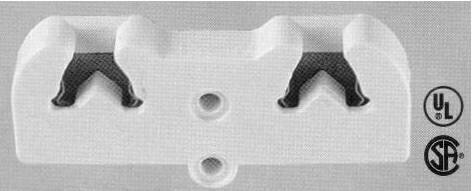

TWIN-BUTT ON BI-PIN LAMP HOLDER
Pressure Lock Terminals Quickwire Single Screw
Butt On Mounting With 2 Screw Holes
Rated 660W-600V

D02-4-3947

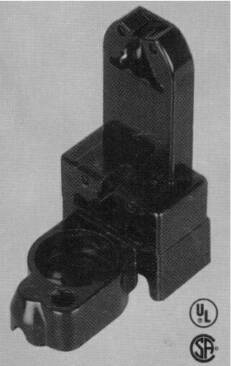

LAMP HOLDER AND STARTER BASE
D02-4-485
