Fluorescent Lamp Holders
This page was last updated: August 13, 2017
T-2 MINIATURE LAMP HOLDER
Front Foot Mounting
6" 18 GA. 105° Leads
Rated 75W-600V

D02-4-3964

(T2 Ballast Pan # D02-4-3999
T2 Lamps in Stock)
T-5 MINIATURE LAMP HOLDER
Short Bracket
Bracket Tapped #6-32
6" 18 GA. 105° Leads
Rated 75W-250V

D02-4-3942
T-5 MINIATURE LAMP HOLDER
Long Bracket
Bracket Tapped #6-32
6" 18 GA. 105° Leads
Rated 75W-250V

D02-4-3957
T-5 MINIATURE LAMP HOLDEP
Molded In Black Phenolic
Thermosetting Plastic
Wired Through Back or Flush
Insulating Mounting Bracket
6" 18 GA. 105° Leads
Rated 75W-250V

D02-4-2654
T-5 MINIATURE LAMP HOLDER
Polycarbonate  Body
Rotating Lamp Lock at 90°
Quickwire
Back Snap-In Mounting
Centered at 20mm
Rated 75W-600V

D02-4-3960

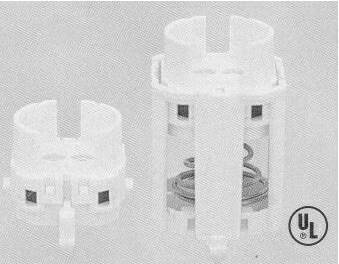

T-5 MINIATURE LAMP HOLDER
Polycarbonate  Body
Rotating Lamp Lock at 90°
Quickwire
Bottom Snap-In Mounting Bracket
Centered at 20mm
Rated 75W-600V

D02-4-3962      Rigid End
(Discontinued)    Spring End
Best if viewed with 1024 resolution!!!!
H043
Page
T-2 MINIATURE LAMP HOLDER
6" 18 GA. 105° Leads
Rated 75W-600V

H08-LH0589    Screw Mount  (Shown)
H08-LH0545    Snap-in Mount
