Punch And Die
This page was last updated: February 4, 2018
Page
H259
Best if viewed with 1024 resolution!!!!

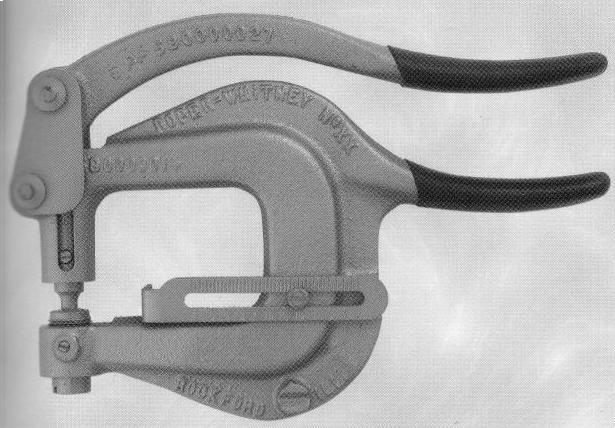

PUNCH WITH SINGLE
PUNCH & DIE SET (9/32")
1 TON PUNCHING POWER
• Deep Throat •
• High Throat •
• Versatile •
Can be Used
Portable or Stationary

DR-X70
SPECIFICATIONS

Capacity 1/4" hole thru 16 ga. mild steel
Depth of Throat      3-1/4"
Height of Throat      2-1/8"
Space between Punch and Die      9/16"
Overall Length      10-1/4"

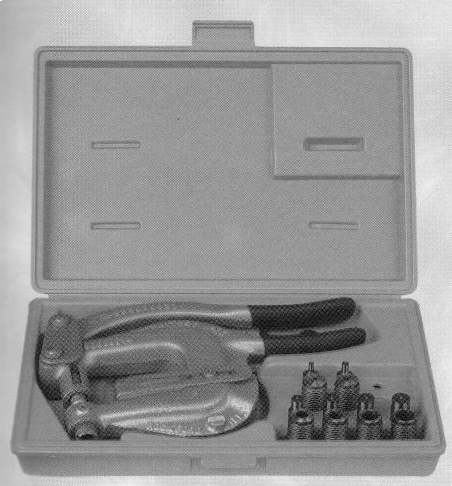

PUNCH WITH DIES
IN CUSTOM BOX
DR-X75

Dies Included
5/32" • 7/32"
9/32" • 1/32"
13/32" • 15/32"
17/32"
PUNCH AND DIES
For DR-X70 Punch

Size   PunchDies
5/32"  DR-X250 DR-X260
3/16"  DR-X251 DR-X261
7/32"  DR-X252 DR-X262
9/32"  DR-X253 DR-X263
11 /32"       DR-X254 DR-X264
25/64" DR-X255*       DR-X265
13/32" DR-X256 DR-X266
7/16"   DR-X257 DR-X267
15/32" DR-X258 DR-X268
17/32" DR-X259**      DR-X269

*slips 1/8 IPS
**slips 1/4 IPS

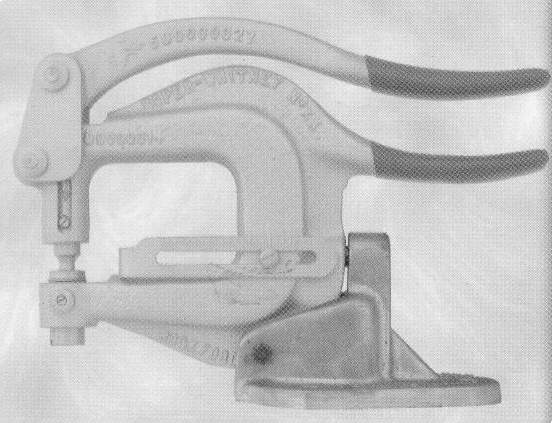

BENCH STAND ONLY
(Shown with DR_X70 Sold Separately)

DR-X72
