Brass Cluster Bodies And Assemblies
This page was last updated: January 31, 2020

2-PIECE SMALL
CLUSTER BODY
Diameter 1-1/8" • Height 1-1/8"
Turned Brass
Side Holes Tapped 1/8 IPS

Top Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued      Brushed         Polished       Unfinished    #Side Holes
---------------------Lacquered--------------------------
D02-1-600AL  D02-1-600BL   D02-1-600PL   D02-1-600             0
D02-1-601AL  D02-1-601BL   D02-1-601PL   D02-1-601             2
D02-1-602AL  D02-1-602BL   D02-1-602PL   D02-1-602             3
D02-1-603AL  D02-1-603BL   D02-1-603PL   D02-1-603             4

Top Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued      Brushed       Polished      Unfinished    #Side Holes
---------------------Lacquered--------------------------
D02-1-604AL  D02-1-604BL   D02-1-604PL   D02-1-604            2
SOLID BRASS BODY WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
(Not Shown)
Diameter/Spread 3-1/2"
Arms Thread 1/8 IP Male Length 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued         Brushed         Polished         Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-601CAL  D02-1-601ABL  D02-1-601APL   D02-1-601A          2
D02-1-602CAL  D02-1-602CBL   D02-1-602CPL  D02-1-602C          3
D02-1-603CAL  D02-1-603CBL   D02-1-603CPL  D02-1-603C          4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued         Brushed         Polished         Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-604CAL  D02-1-604CBL  D02-1-604CPL  D02-1-604C   2

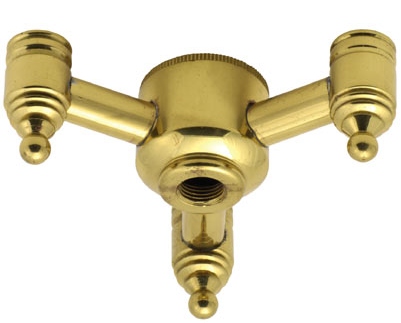

Arms pointing to removable cap
Positioned For Lamp or Sconce Use
(Picture Above)
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued         Brushed          Polished         Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-601DAL   D02-1-601DBL  D02-1-601DPL   D02-1-601D          2
D03-E6213AL    D03-E6213BL    D03-E6213        D02-1-602D          3
D02-1-603DAL   D02-1-603DBL  D02-1-603DPL   D02-1-603D          4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued         Brushed           Polished          Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-604DAL   D02-1-604DBL   D02-1-604DPL   D02-1-604D   2
Page
H108A
SOLID BRASS BODY WITH ARMS
Cluster Body Arms Positioned straight out
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Arms Thread 1/8 IP Male Length 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued           Brushed              Polished             Unfinished   #of Arms
--------------------------Lacquered-------------------------------
D02-1-601C1AL    D02-1-601C1BL   D02-1-601C1PL     D02-1-601C1     2
D02-1-602C1AL    D02-1-602C1BL   D02-1-602C1PL     D02-1-602C1     3
D02-1-603C1AL    D02-1-603C1BL   D02-1-603C1PL     D02-1-603C1     4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued           Brushed             Polished            Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-1-04C1AL   D02-1-604C1BL   D02-1-604C1PL    D02-1-604C1       2

Arms pointing to removable cap
Positioned For Lamp or Sconce Use
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued           Brushed             Polished            Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-601D1AL   D02-1-601D1BL   D02-1-601D1PL    D02-1-601D1       2
D02-1-602D1AL   D02-1-602D1BL   D02-1-602D1PL    D02-1-602D1       3
D02-1-603D1AL   D02-1-603D1BL   D02-1-603D1PL    D02-1-603D1       4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued          Brushed             Polished           Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-604D1AL  D02-1-604B1DL   D02-1-604D1PL   D02-1-604D1        2
SOLID BRASS BODY WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Hang Straight and 1" loop
Arms Thread 1/8 IP Male Length 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued            Brushed             Polished            Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-601C2AL    D02-1-601C2BL   D02-1-601C2PL     D02-1-601C2     2
D02-1-602C2AL    D02-1-602C2BL   D02-1-602C2PL     D02-1-602C2     3
D02-1-603C2AL    D02-1-603C2BL   D02-1-603C2PL     D02-1-603C2     4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued           Brushed             Polished            Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-604C2AL   D02-1-604C2BL   D02-1-604C2PL    D02-1-604C2       2
Other combinations, and finishes may be available or produced e-mail [email protected] your specifications and we will obtain a quote for you!!!
