Spindles Turned Solid Brass
This page was last updated: September 9, 2024
SPINDLE
Diameter 1-1/8"
Height 1 3/4"
Slip 1/8 IPS

D02-2-269AL    Antiqued and lacq.
D02-2-269BL    Brushed and lacq.
D02-2-269PL    Polished and lacq.
D02-2-269 Unfinished

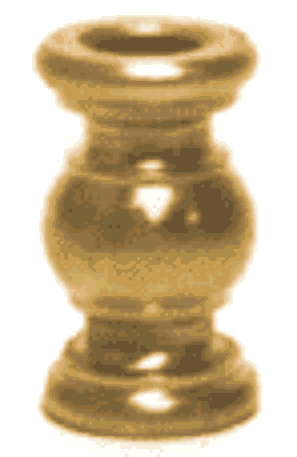

SPINDLE
Height 1-1/2"
Diameter 15/16"
Tapped 1/8 IP
D02-2-247AL    Antiqued and lacq.
D02-2-247BL    Brushed and lacq.
D02-2-247PL    Polished and lacq.
D02-2-247 Unfinished
SPINDLE
Height 2"
Diameter 7/8"
Tapped 1/8 IPS

D02-2-270AL    Antiqued and lacq.
D02-2-270BL    Brushed and lacq.
D02-2-270PL    Polished and lacq.
D02-2-270 Unfinished
D02-2-271 Burnished & Lacq.
K02-G8869       Nickel Finish
SPINDLE
Height 2"
Diameter 7/8"
Slip 1/8 IPS

D02-2-261AL    Antiqued and lacq.
D02-2-261BL    Brushed and lacq.
D02-2-261PL    Polished and lacq.
D02-2-261 Unfinished
D02-2-262 Burnished & Lacq.
K02-G8859       Nickel Finish

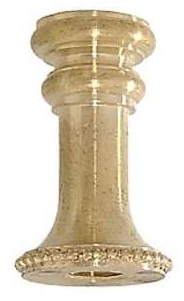

SPINDLE
Diameter 1-1/8"
Height 1 3/4"
Tapped 1/8 IPS

D02-2-267AL    Antiqued and lacq.
D02-2-267BL    Brushed and lacq.
D02-2-267 Unfinished
D02-2-268Polished & Lacq.
SPINDLE
Height 1-1/2"
Diameter 15/16"
Slip 1/8 IPS

D02-2-245AL    Antiqued and lacq.
D02-2-245BL    Brushed and lacq.
D02-2-245PL    Polished and lacq.
D02-2-245 Unfinished
D02-2-246 Burnished & Lacq.
IPS IS AN ACRONYM FOR IRON PIPE STRAIGHT
1/8 IPS IS THE MOST COMMON THREAD IN THE LAMP AND LIGHTING INDUSTRY.
IT IS USED TO CREATE TUBULAR CONNECTIONS ALLOWING ELECTRICAL WIRE TO
PASS THROUGH. THE ACTUAL OUTSIDE DIAMETER OF A 1/8 IPS MALE THREAD
IS 3/8" WITH 27 THREADS PER INCH.
