Twist-N-Lock

GU-24 Electronic Socket Ballast

Also see GU-24 Self-Blasting Compact Flourescent bulbs on page http://www.rcchre.com/CatPages/ADL/Bulbs/B123.html

Lighting Parts Catalog

   HRE Home    About Us    Contact Us    How To and Information    Order Form   Prices    Search Our Web Site    Links

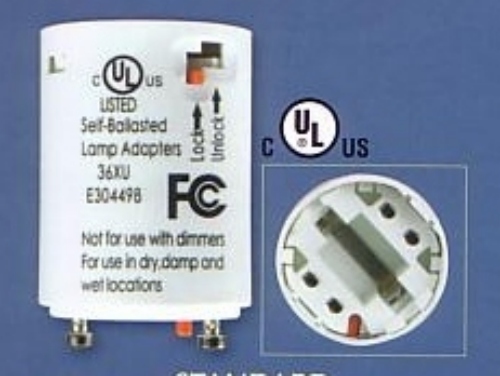

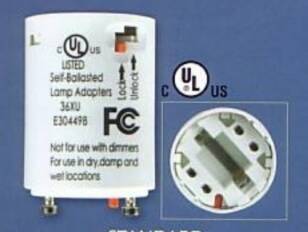

Sun Lite Standard

Dimensions (Not including pins)

Height 2" •  Diameter 1-1/2" White with Locking Pin 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-4-352013 Watt  G24q-1/Gx24q-1

D02-4-352218 Watt  G24q-2/Gx24q-2

D02-4-352426 Watt  G24q-3/Gx24q-3

ADL Short

Dimensions (Not including pins)

Height 1 1/2" •  Diameter 1-1/2" Ivory with Locking Tab 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-4-354218 Watt  G24q-2/Gx24q-2

Limited quanity discontinued

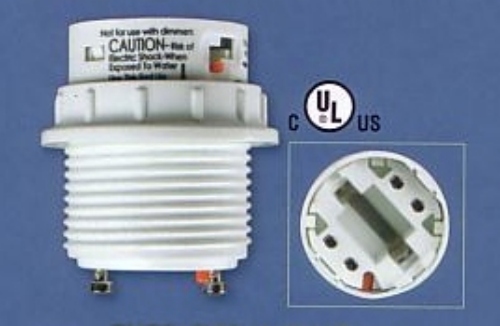

Sun Lite Threaded With Ring

Dimensions (Not including pins)

Height 2" •  Diameter 1-1/2" White with Locking Tab 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-4-353013 Watt  G24q-1/Gx24q-1

D02-4-353218 Watt  G24q-2/Gx24q-2

D02-4-353426 Watt  G24q-3/Gx24q-3

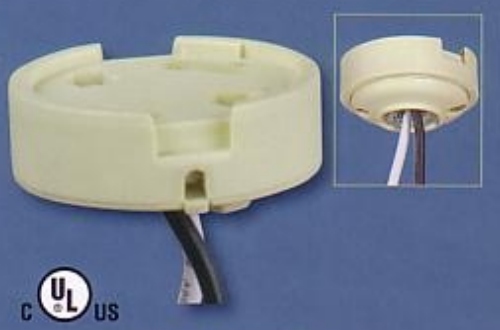

ADL Mounting Base

For GU-24 Socket Ballast

Height 1 1/16"

  Diameter 1-1/2"

Tapped 1/8 IP

Ivory with 18" AWM 105 Degree Leads

Rated 600V-600W

D02-4-3517

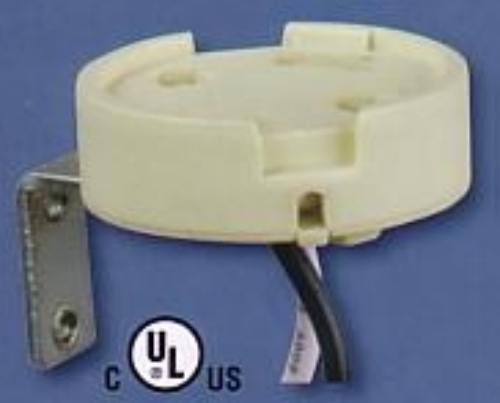

ADL Mounting Base

For GU-24 Socket Ballast

Height 1/2"

(Not Including bracket)

  Diameter 1-1/2"

With L bracket Ivory with 18" AWM 105 Degree Leads

Rated 600V-600W

D02-4-3518

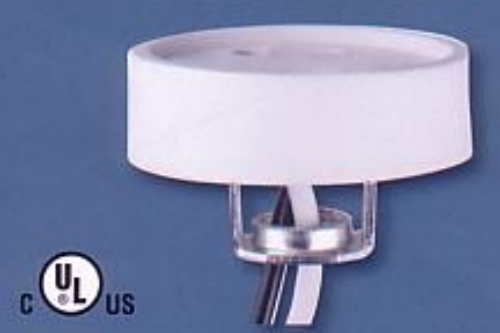

Mounting Base

For GU-24 Socket Ballast

Height 1/2"

(Not Including Hickey)

  Diameter 1-1/2"

Wtih Hickey Ivory with 18" AWM 105 Degree Leads

Rated 600V-600W

D02-4-3519

Socket Ring Only

For D02-4-3530 D02-4-3532 D02-4-3534

D02-4-547

Last Page     Next Page

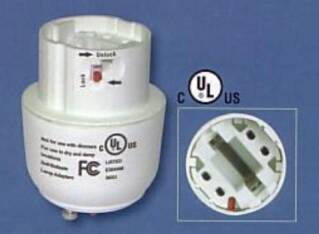

Sun Lite Standard

Dimensions (Not including pins)

Height 2 1/2" •  Diameter 2 1/4" White with Locking Pin 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-4-355226 Watt  G24q-3/Gx24q-3

D02-4-355332 Watt  G24q-3/Gx24q-3

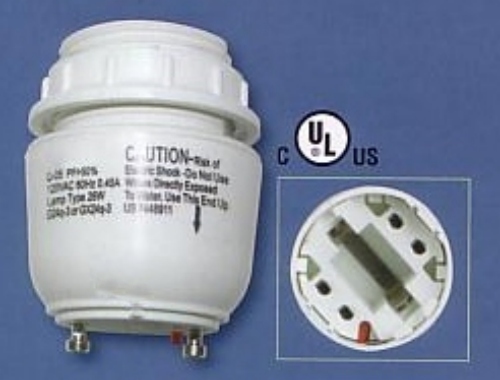

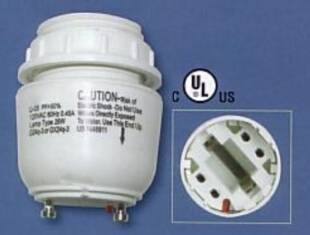

Sun Lite Threaded With Ring

Dimensions (Not including pins)

Height 2 1/2" •  Diameter 2 1/4" White with Locking Pin 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-4-355426 Watt  G24q-3/Gx24q-3

D02-4-355532 Watt  G24q-3/Gx24q-3

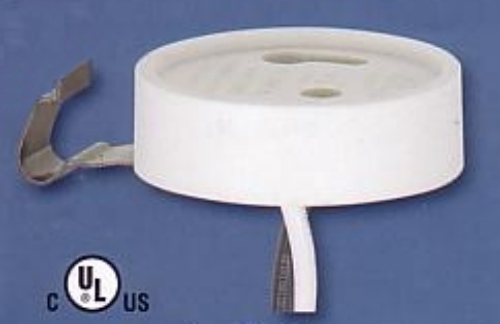

Mounting Base

Non-Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1"

  Diameter 1 1/2"

With 90 degree clip-in

White with 18" AWM 105 Degree Leads

D02-4-3511

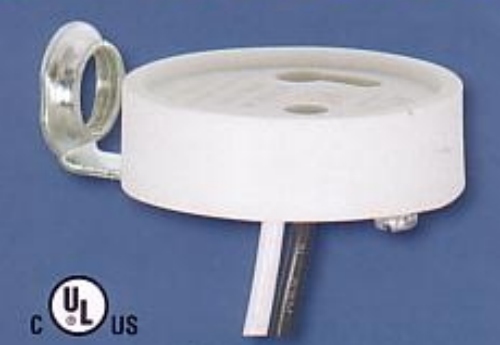

Mounting Base

Non-Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1"

  Diameter 1 1/2"

With 90 degree 1/8 IP Hickey

White with 18" AWM 105 Degree Leads

D02-4-3512

Mounting Base

Sun Lite Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1"

  Diameter 1 1/2"

Tapped 1/8 IP

White with 18" AWM 105 Degree Leads

D02-4-3513

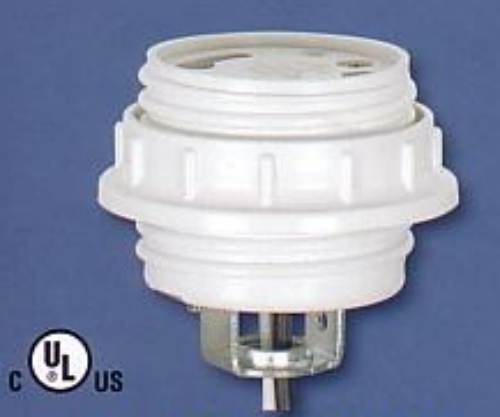

Mounting Base Threaded

Sun Lite Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1 1/2"

  Diameter 1 1/2"

1/8 IP Hickey

White with 18" AWM 105 Degree Leads

D02-4-3514

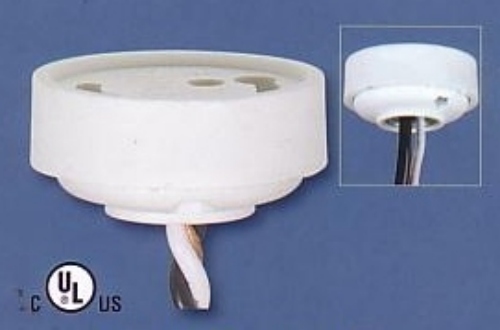

Mounting Base

Non-Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1"

  Diameter 1 1/2"

Tapped 1/8 IP

White with 18" AWM 105 Degree Leads with Ground

Rated 600V-600W

D02-4-3516

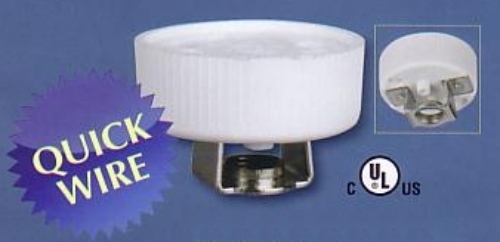

Mounting Base

Non-Locking

For GU-24 Socket Ballast

Height 1/2"  (Not Including Hickey) Diameter 1-1/2"

Wtih Hickey White with Quick Connect Terminals

Rated 600V-600W

D02-4-3525
