PL Sockets and Quad Sockets

This page was last updated: August 16, 2017

FOR G23 AND G23-2 LAMP BASE

          MOUNTING   LAMP BASE             Phillips                          Osram Sylvania           GE Lighting

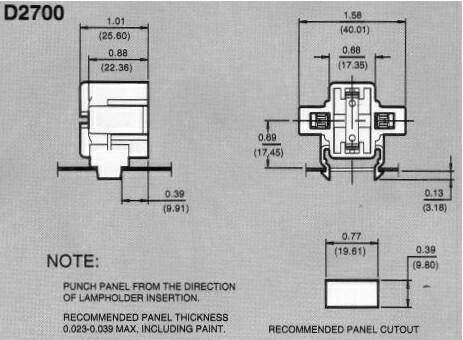

D02-4-2700  Horizontal Snap-In                      G23*G23-2

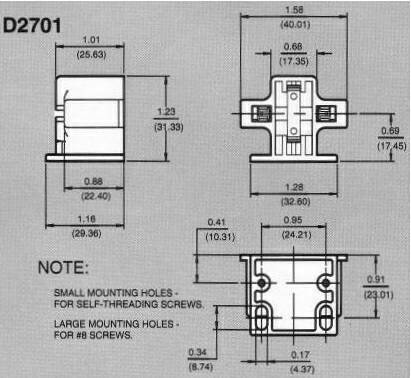

D02-4-2701  Horizontal Screw-Down            G23*G23-2         PL-S                                Dulux S                         Biax

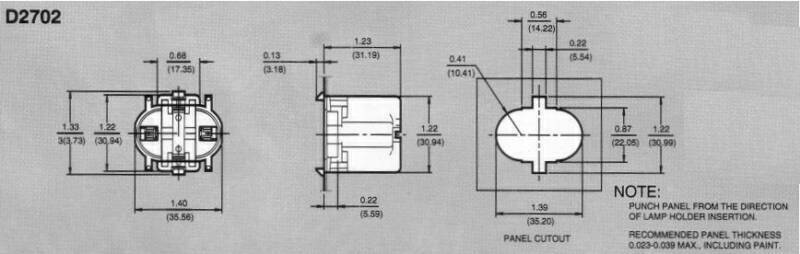

D02-4-2702 Vertical Top Snap-In        G23                                5W, 7W & 9W               5W, 7W & 9W             5W, 7W & 9W

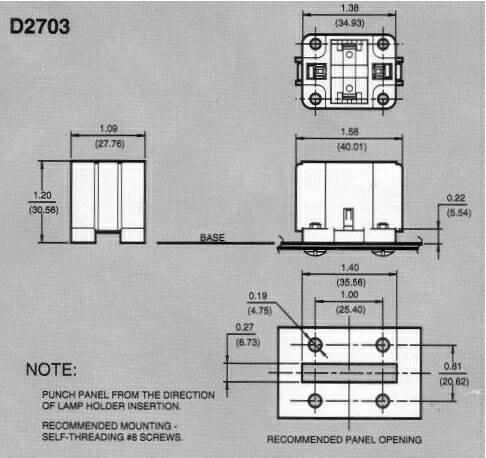

D02-4-2703  Vertical Screw-Down                G23*G23-2                                                            Dulux D 9W                  Double Biax 9W

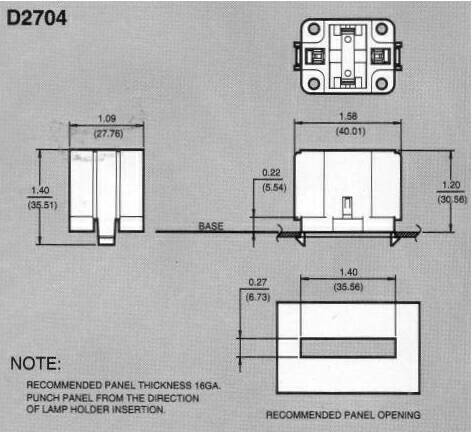

D02-4-2704  Vertical  Bottom Snap-In          G23*G23-2

for 16GA Panels

NOTE:

Dimension On This Page In Parentheses Are In Millimeters. All Others Are In Inches.

All PL Sockets Are U.L. Listed and C.S.A. Certified 75W - 600V

Last Page     Next Page

Quick Connect Push-In Wiring For 18 GA. Solid or Twisted and Tinned Leads, Stripped 5/16"
