PHOTO CONTROL SWITCH
Length 2-1/16", Width 1 1/8" Height 13/16"
Threaded 3/4" long Male Nipple for Standard 1/2IP KO
Turn-On Turn-Off Ratio: 1 to 3
Single Pole, Single Throw Switch
Color Coded 6" Leads
Wiring Diagram Included
Contact Position at Night: Normally Closed
Ballast V.A. -1100 1200 Watt

D02-4-580       120 Volt
D02-4-582       208-277 Volt

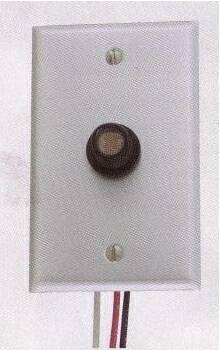

PHOTO CONTROL SWITCH
Wall Plate and Gasket
Wiring Diagram Included
Ballast V.A. -1100 1200 Watt

D02-4-590       120 Volt
PENCIL TYPE PHOTO CONTROL SWITCH
Adjustable Swivel, Grey, 1/2 NPT Male,
Single Pole Lexan Housing, Single Throw Switch
Wiring Diagram Included
1200 Watt

D02-4-597       120 Volt
MULBERRY PHOTO CONTROL SWITCH
Adjustable Swivel, Grey, 1/2 NPT Male,
Single Pole Lexan Housing, Single Throw Switch
Color coded 6" Leads Wiring Diagram on Unit
Turn-On, Turn-Off Ratio: 1 to 3
Operating Levels: .5 to 10 Foot Candles
Contact Position at Night: Normally Closed
Power Consumption: Below 1.5 Watts Avg
Field Adjustable Light Level
Ballast V.A. 1900

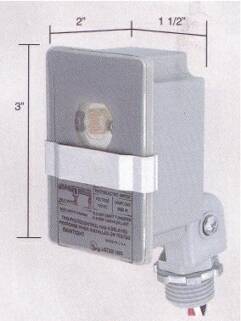

LEXAN HOUSING
Grey, 1/2 NPT Male,
2000 Watt

D02-4-575     120 Volt

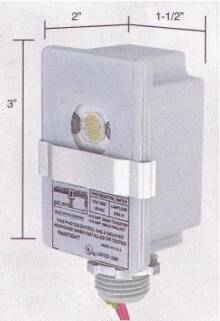

LEXAN HOUSING
Grey, 1/2 NPT Male,

D02-4-570   2000 Watt 120 Volt
D02-4-572   2000 Watt 208-277 Volt
